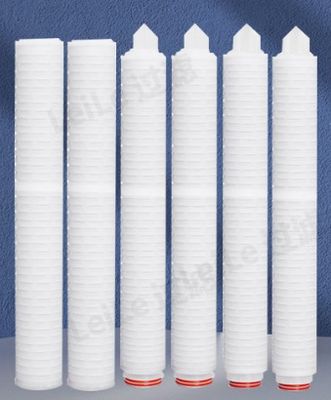

Hydrophilic PTFE Pleated Filter Cartridge High Flow Chemical Resistant

Large Image : Hydrophilic PTFE Pleated Filter Cartridge High Flow Chemical Resistant

Product Details:

Place of Origin:	CHINA
Brand Name:	FILTERK
Certification:	ISO 9001
Model Number:	PTFE

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Packaging Details:	Plastic bag inside,carton outside. Optional: Pallet or wooden case for large quantities.(Need extra cost)
Delivery Time:	1 week
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	1000pcs/week

Contact Now

Hydrophilic PTFE Pleated Filter Cartridge High Flow Chemical Resistant

Description

Pleat No:	8,10, 12 Rays	Emission:	Less
Operating Pressure:	Up To 10 Bar	Efficiency:	99.9%
Metal Hoop:	SUS 304	Installation:	Vertical Lifting
Structure:	Cartridge Filter	Filter Area:	1（m²）
Micron Rating:	0.5-200 Microns	Size:	Custiomized
Type:	Dust Filter Bag	Pulse Jet Pressure:	Lower
Origin:	China	Filter Media:	Polyester Antistatic
Specification:	130*2500
Highlight:	Chemical Resistant Pleated Filter Cartridge , High Flow Pleated Filter Cartridge , Hydrophilic PTFE Pleated Filter Cartridge

Hydrophilic PTFE Pleated Filter Cartridge – High Flow & Chemical Resistant

PTFE hydrophilic folding filter element is made of hydrophilic polytetrafluoroethylene (PTFE) filter membrane θ In addition, it has excellent chemical compatibility and corrosion resistance θ Due to the characteristics of its hydrophilic filter material, it can filter aqueous solutions without pre-wetting treatment θ It greatly saves the cost of operation time.

[Product Features]

PTFE membrane material has excellent bearing capacity and good tolerance to various materials. θ It can be used to filter a variety of highly corrosive liquids. PTFE film material is used for high d washing rate θ to ensure the removal of impurity particles Good tolerance to a variety of chemicals θ can be used to filter a variety of etching and stripping liquids and other corrosive liquids. The filter element 1 is printed% for hyperactivity detection

Parameter	Specifications
Membrane Material	Hydrophilic Polytetrafluoroethylene (PTFE)
Structure	Pleated with PP/PES support core
Pore Size	0.1 μm – 10 μm
Bubble Point	≥4.0 bar (0.2 μm rated)
Max. Temperature	130°C (266°F) continuous
pH Range	0-14 (full chemical resistance)
Protein Binding	<3 μg/cm² (ultra-low binding grade)
End Caps	Polypropylene with EPDM/Silicone gasket
Certifications	USP Class VI, FDA 21 CFR 177.1550, ISO 9001
Sterilization	Autoclave, Gamma, ETO compatible
Applications	• Biopharmaceutical • IV Solution • Semiconductor DI water

Our hydrophilic PTFE pleated cartridges combine PTFE's unmatched chemical stability with spontaneous water absorption, eliminating the need for alcohol pre-wetting. The advanced membrane structure delivers high flux rates while maintaining absolute filtration accuracy.

Key Advantages:
✔ True Hydrophilicity – Water contact angle <30° (vs >100° for standard PTFE)
✔ Broadest pH Tolerance – 0-14 full range compatibility
✔ Gamma Stable – Maintains performance after 50 kGy irradiation
✔ Validatable – Complete DOP/QCP documentation package

Package & Delivery

Service Provide:

OEM service, printing or logo information is acceptable.
