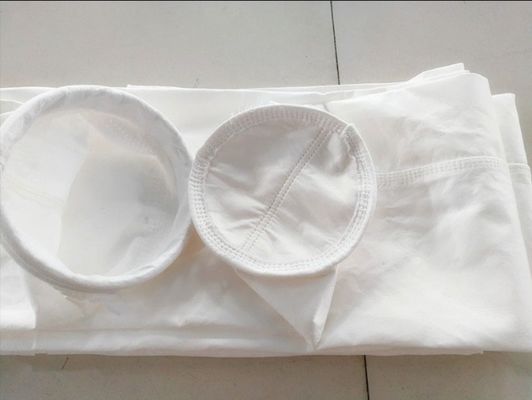

High Temperature Chemical Resistance PTFE Filter Bags For 0240D005BN3HC 5 Μm Filtering Precision

Large Image : High Temperature Chemical Resistance PTFE Filter Bags For 0240D005BN3HC 5 Μm Filtering Precision

Product Details:

Place of Origin:	CHINA
Brand Name:	FILTERK
Certification:	ISO 9001
Model Number:	PTFE

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Packaging Details:	Plastic bag inside,carton outside. Optional: Pallet or wooden case for large quantities.(Need extra cost)
Delivery Time:	1 week
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	1000pcs/week

Contact Now

High Temperature Chemical Resistance PTFE Filter Bags For 0240D005BN3HC 5 Μm Filtering Precision

Description

Type:	High Pressure Hydraulic Filter	Model No:	0240D005BN3HC
End Caps:	PU	Filtering Precision:	5 μm
Core Material:	Polypropylene, Stainless Steel	Filtration Accuracy:	3um-200um
Top End Cap:	PU Or Rubber	Modle:	FX2000 OM/050
Model:	025 AAR	Porosity:	0.01 Um
Length:	10-40 Inches	Condition:	New
Filtration Efficiency:	100% For Particles Larger Than 5um	Media Material:	FIBERGLASS
Filtering Accuracy:	3 Micron
Highlight:	Chemical Resistance PTFE Filter Bags , High Temperature PTFE Filter Bags , 5 μm PTFE Filter Bags

PTFE Filter Bags – High Temperature & Chemical Resistant

PTFE (polytetrafluoroethylene) filter bags are a specialized type of filter bag used in filtration applications. PTFE is known for its hightemperature resistance, acid and magnetic resistance, corrosion resistance, and smooth surface. In the chemical industry, these bags perform exceptionally well under extreme conditions. PTFE (polytetrafluoroethylene) filter bags are suitable for industries with high acid content, and they can be used in a pH range of 1 to 14. PTFE (polytetrafluoroethylene) filter bags can withstand temperatures up to 260 degrees Celsius and are widely used in the chemical, pharmaceutical, and other industries. These bags have excellent chemical compatibility, capable of withstanding benzene, solvents, aromatic compounds, strong acidic solutions, and strong alkaline solutions.

Parameter	Specifications
Material	100% Polytetrafluoroethylene (PTFE), may include ePTFE membrane
Filtration Rating	0.1 micron – 100 micron
Max. Temperature	• Continuous: 260°C (500°F) • Peak: 300°C (572°F)
pH Resistance	0-14 (resists all acids/alkalis, including HF)
Burst Strength	≥ 1.2 MPa (174 psi)
Surface Properties	Hydrophobic, Non-stick, Low Protein Binding
Seam Type	Pure PTFE Welding (no adhesives)
End Options	PTFE-coated SS316 ring / Heat-resistant stitching
Certifications	FDA, USP Class VI, REACH, ISO 9001
Applications	• Pharma/Biotech • Chemical Processing • High-Temp Dust Collection
Special Features	• Steam Sterilizable • Zero Fiber Shedding

Why Choose PTFE?
✔ Unmatched Chemical Resistance – Withstands even hydrofluoric acid (HF)
✔ Highest Temperature Tolerance – Operates continuously at 260°C (500°F)
✔ Non-Stick Surface – Prevents clogging and simplifies cleaning
✔ Biological Safety – USP Class VI certified for pharmaceutical use

Package & Delivery

Service Provide:

OEM service, printing or logo information is acceptable.
