Polyester PE Filter Bags High Flow Rate Chemical Resistant

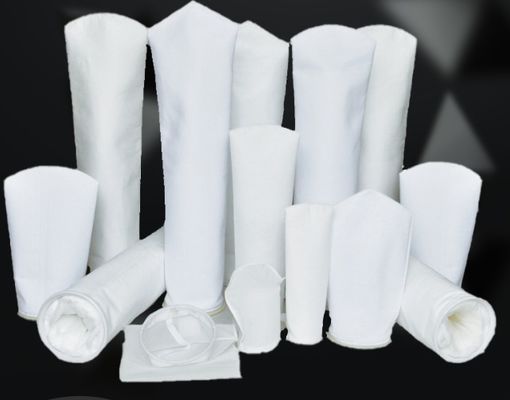

Large Image : Polyester PE Filter Bags High Flow Rate Chemical Resistant

Product Details:

Place of Origin:	CHINA
Brand Name:	FILTERK
Certification:	ISO 9001
Model Number:	PE

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Packaging Details:	Plastic bag inside,carton outside. Optional: Pallet or wooden case for large quantities.(Need extra cost)
Delivery Time:	1 week
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000pcs/week

Contact Now

Polyester PE Filter Bags High Flow Rate Chemical Resistant

Description

Hs Code:	59119000	Bag Diameter:	120mm, 130mm, 150mm, 155mm, 160mm
Building Space:	Reduce	Certifications:	FDA, NSF, ISO 9001:2015
Bottom End Cap:	Galvanized With Internal Thread	Shipping:	Sea, Air, Courier
Micron Rating:	1, 5, 10, 25, 50, 75, 100, 200	Number Of Pleats:	8 & 12
Bottom:	Double Layer	Temperature:	120-150°C
Filtration Efficiency:	99%(Particles Larger Than 5um)	Leadtime:	Negotiable
Performance:	Alkali Resistance, Acid Resistance	Shape:	Round Or Rectangular
Sealing Method:	Sewn Or Welded
Highlight:	High Flow Rate PE Filter Bags , Chemical Resistant PE Filter Bags , Chemical Resistant Polyester Filter Bags

Polyester (PE) Filter Bags – High Flow Rate, Chemical Resistant

PE poly filter bag is made of 100% poly cool fiber filter cloth, and the filtration accuracy is optional from Q5µm~300μm. Compared with PP polypropylene filter bag, PE poly cool filter bag is a filter bag with higher filtration accuracy and better filtration efficiency. PE poly cool filter bag, like PP polypropylene non-woven filter bag, can be divided into full-seam filter bag, full-welded filter bag and welded steel cheek filter bag. The ring can also be made of high-quality S5304 stainless steel and zinc engraved/PE plastic ring.

[Excellent product]
High flow, low pressure drop.
Replacement pressure difference is 0.10MPa, replacement pressure difference cannot exceed 0.18MPa.
Wide chemical compatibility

Parameter	Details
Material	100% Polyester (PE) fiber, may include PET (Polyethylene Terephthalate)
Filter Media Type	Needle felt / Melt-blown / Non-woven / Pleated (specify)
Filtration Rating	1 micron – 200 micron (customizable)
Common Sizes	• Diameter: 180mm (7"), 420mm (16.5") • Length: 300mm – 1200mm (custom lengths available)
Max. Temperature	• Continuous: 130°C (266°F) • Peak: 150°C (302°F)
pH Resistance	2 – 12 (excellent acid/alkali resistance)
Burst Strength	≥ 0.8 MPa (116 psi) – varies by thickness
Air Permeability	100-300 CFM/ft² (adjustable for dust collection)
Seam Construction	Ultrasonic welded / Heat sealed / Double-stitched with PP thread
End Options	Open top / Metal ring (SS304/316) / Snap band / Gusseted design
Key Applications	• Dust collection (baghouses) • Liquid filtration (chemicals, coatings) • Food-grade (beverage, edible oil)
Certifications	FDA (if food-grade), ISO 9001, OEKO-TEX (optional)
Color	White (standard), blue/green (industry-specific coding)
Reusability	Washable & reusable (up to 5 cycles for needle felt types)

Package & Delivery

Service Provide:

OEM service, printing or logo information is acceptable.
