Polypropylene PP Filter Bags High Efficiency Liquid / Solid Separation

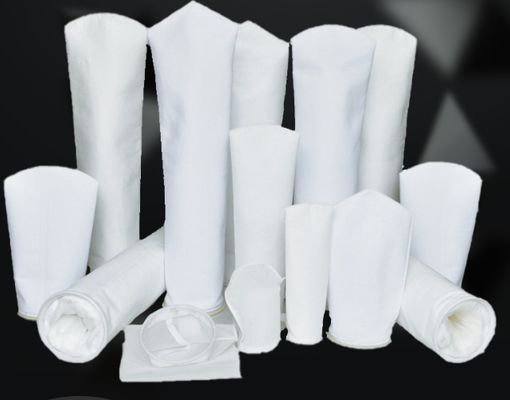

Large Image : Polypropylene PP Filter Bags High Efficiency Liquid / Solid Separation

Product Details:

Place of Origin:	CHINA
Brand Name:	FILTERK
Certification:	ISO 9001
Model Number:	PP

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Packaging Details:	Plastic bag inside,carton outside. Optional: Pallet or wooden case for large quantities.(Need extra cost)
Delivery Time:	1 week
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	1000pcs/week

Contact Now

Polypropylene PP Filter Bags High Efficiency Liquid / Solid Separation

Description

Fabric:	Aramid / Nomex	Mesh:	1 (mesh/inch)
Color:	White,Yellow	Temperature:	120-150°C
Suitable:	Dust	Length:	78.74 Inch / 2000 Mm
Filter Media:	Polyester Antistatic	Structure:	Cartridge Filter
Working Temperature:	160-180deg C,280 Degree,120-150°C	Filtering Area:	4.6m2
Building Space:	Reduce	Operation Cost:	Reduce
Material Of Bag:	Polyester,Non-woven,Nylon,PE,PTFE	Material:	Polyester
Seam Type:	Welded
Highlight:	Solid Separation Filter Bags , High Efficiency Filter Bags , PP Polypropylene Filter Bags

Polypropylene (PP) Filter Bags - High Efficiency Liquid/Solid Separation

Polypropylene filter bag soap is a bag filter element made of polypropylene material, mainly used in petrochemical, paint and medicine, automobile manufacturing, food and beverage and other fields.

The filter material forms a three-dimensional, highly porous and intricate filter layer. Its key feature is the loose fiber structure, which significantly increases the capacity to hold impurities. This type of fiber material operates in a circumfer-ential interception mode, effectively removing solid and soft particles. Larger particle impurities are retained on the fiber surface, while finer particles are carried to the deeper layers of

the filter material. During use, it does not break down due to increased pressure, thus achieving high filtration efficiency. The filter cloth undergoes high-temperature surface heat treatment and instant pressing technology/finishing treatment, effectively preventing fiber damage from high-speed liquid impact. This ensures no fibers fall off, preventing filter fluid contamination, and avoids the excessive clogging of filter pores caused by traditional pressing methods, which can shorten the filter bag's lifespan. Additionally, the low pressure difference does not affect the flow rate.

Parameter	Details
Material	100% Polypropylene (PP) – Non-toxic, chemically resistant
Filter Media	Melt-blown PP / Non-woven PP / Pleated PP (specify your type)
Filtration Rating	1 micron – 200 micron (customizable)
Diameter	180mm (7"), 420mm (16.5"), or custom sizes
Length	300mm – 1000mm (standard), custom lengths available
Max. Temperature	90°C (194°F) – Short-term peak 95°C (203°F)
pH Resistance	1 – 14 (high chemical resistance)
Operating Pressure	≤ 0.5 MPa (72.5 psi)
Flow Rate	Varies by micron rating (e.g., 5µm: ~10 L/min·m² @ 0.1MPa)
Seam Type	Ultrasonic welding / Heat sealing / Stitched (specify)
End Cap Options	Open-ended / Metal ring (SS304/SS316) / Snap band / Nylon loop
Applications	Water treatment, chemicals, food & beverage, pharmaceuticals, oil filtration
Certifications	FDA, RoHS, ISO 9001 (if applicable)
Color	White (standard), custom colors available
Reusability	Disposable (single-use) / Cleanable (multi-use)

Package & Delivery

Service Provide:

OEM service, printing or logo information is acceptable.
