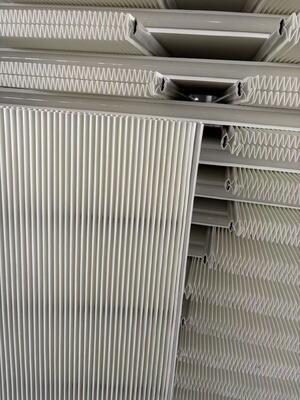

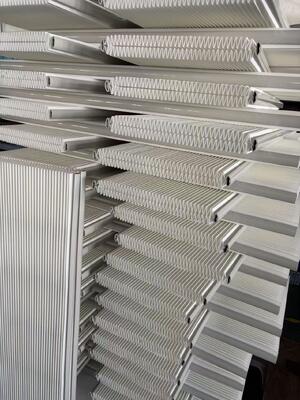

Panel‑Type Dust Filter Cartridge

Core Materials

1. Optional Filter Media

• Standard version: Thickened polyester non‑woven fabric with high dust‑holding capacity and good wear‑resistance, suitable for wood‑working dust, spraying powder and general industrial smoke.
• Premium version: PTFE‑coated polyester material with non‑stick surface. Ultra‑fine dust will hardly adhere to the filter. It achieves thorough cleaning during pulse‑jet process. It works excellently for stainless‑steel dust, aluminum‑magnesium powder and graphite dust. The filtration efficiency reaches up to 99.95% at 0.3‑micron rating.
• Optional upgrade: Anti‑static or flame‑retardant filter cloth to avoid fire risks caused by static electricity for flammable and explosive dust.

2. Frame Construction

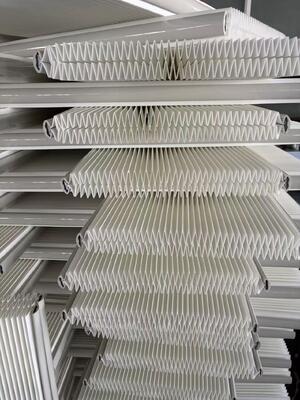

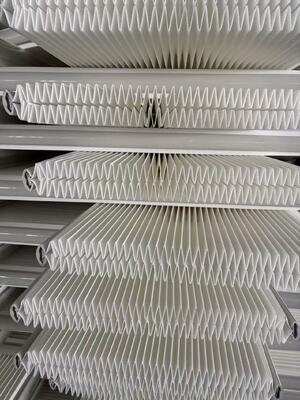

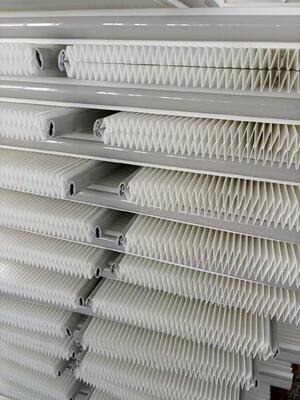

   The integrally cast polyurethane frame delivers outstanding tight sealing to prevent air leakage through gaps. Unlike metal frames, our PU frame will never get rusty or deformed and performs steadily under humid working conditions. Deep‑pleated filter media expands the filtering area within limited space and greatly prolongs service life.

Technical Parameters

1. Filtration Rating: 5μm for regular polyester type; 0.3μm for PTFE‑coated version.
2. Working Pressure: Initial resistance:80‑150Pa; Replace the filter when final resistance hits 600Pa (8.7 psi). Max instantaneous pulse‑jet pressure ≤0.15MPa (22 psi).
3. Operating Temperature: ‑20℃ ~100℃.
4. Standard Size:600×600mm; Custom length, width and thickness are available.
5. Installation Method: Cartridge‑in slot design for easy assembly and dis‑assembly without extra tools.

Application Scope

Our Advantages

1. Flat panel design fits narrow dust‑removal cabinets and saves internal equipment space.
2. PTFE‑coated material resists blockage effectively. Service life is increased by 40%‑60% compared with ordinary filter elements due to excellent pulse‑jet cleaning performance.
3. One‑piece molded PU frame keeps stable sealing without glue‑falling‑off after long‑time running.
4. We are original manufacturer offering customized sizes and different filter‑material choices with competitive bulk‑order price.

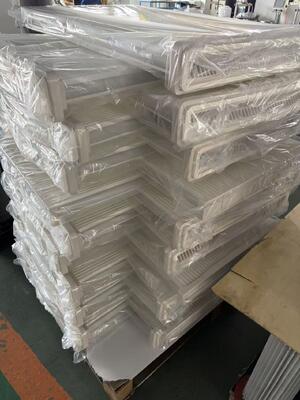

5. Every cartridge is individually wrapped with plastic film to avoid contamination during shipment.

Purchase Instructions

1. More favorable price for bulk‑order, pallet‑loading shipment brings the best cost‑performance.
2. Custom versions including anti‑static, high‑temperature‑resistant and thickened‑type are available.
3. Every batch will pass strict tests on air permeability and tight‑sealing before delivery for stable quality.
4. Place of Origin: Zhangjiagang, Jiangsu Province, China.
