TAISEI KOGYO Replacement Hydraulic Filter Element (P-UL Series)

TAISEI KOGYO Replacement Hydraulic Filter Element (P-UL Series)

Description
Highlight:

TAISEI KOGYO hydraulic filter element

,

P-UL series replacement filter

,

hydraulic cartridge filter element

1. Brief Overview


Our replacement hydraulic filter cartridge is interchangeable with original TAISEI KOGYO P-UL series filter, widely applied for hydraulic oil filtration on injection molding machines, CNC machine tools, hydraulic power stations, compressors and marine hydraulic systems. The pleated yellow phenolic-impregnated filter paper structure delivers stable impurity interception performance for industrial fluid purification.

2. Core Construction & Material


  • Filter Medium: High-quality yellow phenolic resin impregnated cellulose filter paper, featuring uniform pleats, excellent oil absorption capacity and stable filtration precision; optional glass fiber paper for higher demanding working conditions.
  • End Caps: Cold rolled steel end caps with anti-rust treatment at top & bottom, tight bonding with filter medium to avoid bypass leakage of hydraulic fluid.

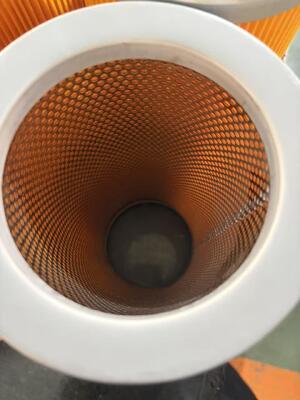

  • Inner Support: Perforated metal inner core supports filter medium against deformation under high working pressure, extending service lifespan.

3. Main Technical Parameters


  1. Filtration Rating: 10μm / 20μm / 40μm (custom precision available per customer requirement)
  2. Working Medium: Mineral hydraulic oil, gear oil, lubricating oil
  3. Operating Temperature: -25℃ ~ +120℃
  4. Standard Sizes: Full range matches original P-UL-03A, P-UL-08A, P-UL-16 series dimensions; OEM custom OD, ID & length is acceptable.

4. Key Advantages


✅ Perfect interchange with original TAISEI filter, direct replacement without modifying filter housing

✅ High dirt holding capacity, longer service cycle to reduce your regular replacement cost

✅ Strict 100% pressure leakage inspection before shipment to eliminate bypass risk

✅ Support OEM & ODM: Custom printing customer part number, logo, customized packaging

✅ Cost-effective alternative vs original brand with same filtration performance

5. Application Fields


  • Injection molding & plastic machinery hydraulic system
  • CNC lathe, machining center hydraulic station
  • Air compressor, hydraulic pump station
  • Marine engineering equipment, ship hydraulic system
  • Construction machinery lubrication & hydraulic circuit

6. Trade Terms for Your Reference


  • MOQ: 1pc for sample order; bulk order negotiable
  • Sample policy: Sample cost charged, courier fee collect; sample charge deducted from formal bulk order payment
  • Trade term: EXW / FOB Zhangjiagang / CFR available as clients’ demand
  • Payment: 30% TT deposit before production, balance paid before shipment
