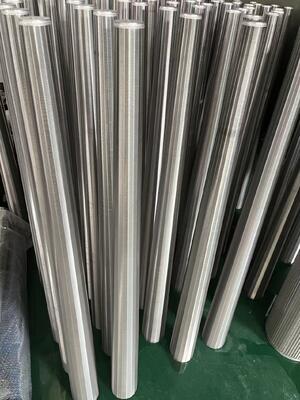

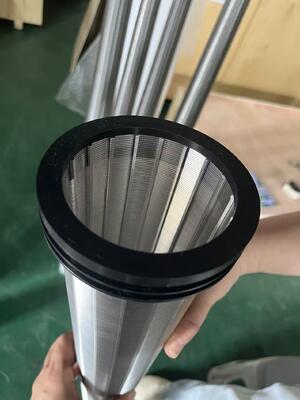

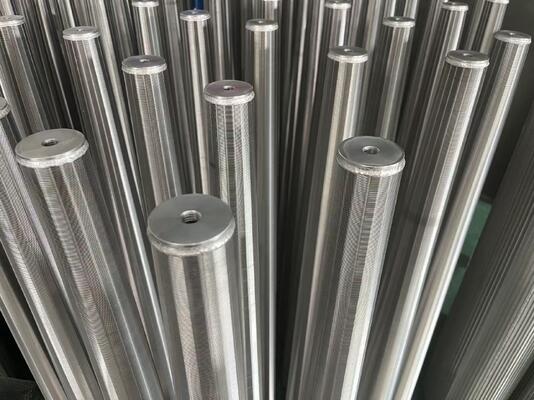

Stainless Steel Wedge Wire Filter Element for Automatic Self-Cleaning Filters (HYDAC RF3 Type)
Product Description:
This wedge wire filter element is designed as a cost-effective and reliable alternative to the filter element used in HYDAC AutoFilt RF3 automatic self-cleaning filters, providing excellent mechanical strength, precise filtration, and long service life.
The filter element is manufactured from high-quality stainless steel wedge wire, featuring a V-shaped wire profile that forms a continuous slot structure.
This design ensures accurate filtration, high open area, low pressure drop, and excellent resistance to clogging, making it ideal for automatic back-flush or self-cleaning filtration systems.
The element is dimensionally and functionally compatible with HYDAC AutoFilt RF3 series self-cleaning filters.
It can be installed directly into existing RF3 filter housings without modification.
Note: This product is not manufactured by HYDAC. HYDAC is a registered trademark of its respective owner.
Technical Specifications:
| Item |
Description |
| Product Name |
Wedge Wire Filter Element |
| Filter Type |
Automatic Self-Cleaning Filter Cartridge |
| Compatible Model |
HYDAC AutoFilt RF3 (Compatible / Alternative) |
| Filter Media |
Stainless Steel Wedge Wire (V-profile) |
| Material Options |
SS304 / SS316 / SS316L |
| Filtration Rating |
25 μm / 50 μm / 100 μm / 200 μm / Customized |
| Slot Opening |
Customized according to filtration rating |
| Structure |
Conical, Cylindrical, Continuous Slot Design |
| Outer Diameter |
Customized (RF3 compatible) |
| Inner Diameter |
Customized (RF3 compatible) |
| Length / Height |
Customized (RF3 compatible) |
| Operating Pressure |
Suitable for high-pressure self-cleaning systems |
| Operating Temperature |
Up to 400°C (depending on material) |
| Flow Direction |
Outside to Inside |
| Cleaning Method |
Automatic back-flush / self-cleaning |
| Reusability |
Washable & Reusable |
| Application |
Process water, cooling water, hydraulic & lubrication systems |
| OEM Service |
Available (drawing or sample accepted) |
This product is a compatible replacement filter element and is not manufactured by HYDAC. HYDAC is a registered trademark of its respective owner.
Compatible with HYDAC AutoFilt RF3
Designed as a direct replacement filter element for HYDAC RF3 automatic self-cleaning filters, ensuring reliable fit and performance.
High-Precision Wedge Wire Structure
V-profile stainless steel wedge wire provides uniform slot opening, accurate filtration, and excellent particle retention.
High Flow Rate & Low Pressure Drop
Continuous slot design offers large open area, allowing high flow capacity with minimal pressure loss.
Excellent Self-Cleaning Performance
Ideal for automatic back-flush systems; dirt is easily released during cleaning, reducing maintenance frequency.
Long Service Life & Reusable Design
Fully metallic construction, corrosion-resistant, washable, and reusable—significantly reducing operating costs.
