Stainless Steel Coalescing Filter Element with 99% Efficiency and 0.3u Porosity for Gas/Liquid Separation

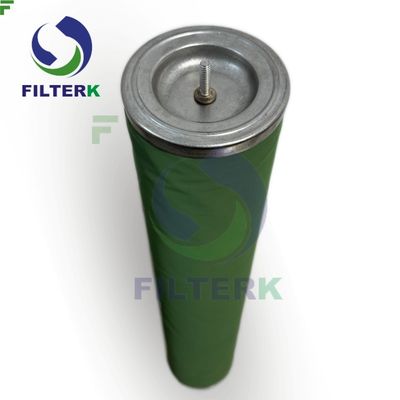

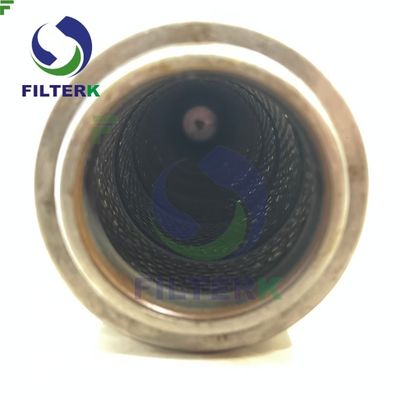

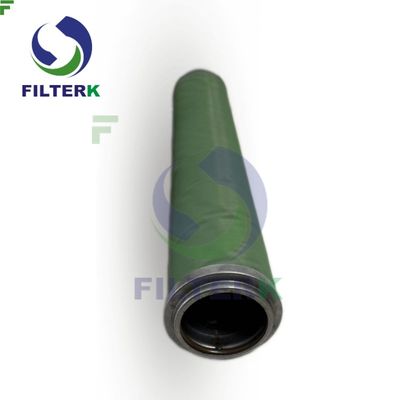

Large Image : Stainless Steel Coalescing Filter Element with 99% Efficiency and 0.3u Porosity for Gas/Liquid Separation

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	FILTERK

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$20-30

Contact Now

Stainless Steel Coalescing Filter Element with 99% Efficiency and 0.3u Porosity for Gas/Liquid Separation

Description

Filtration Efficiency:	99%	Porosity:	0.3u
Weight:	0.8	Material:	Stainless Steel
Outer Diameter:	150	Inner Diameter:	88
Height Options:	600, 800, 900, 1000, 1150	Operating Temperature:	5°C - 80°C
Skeleton Material:	Carbon Steel Perforated	Filter Material:	Teflon
Filter Material Form:	Pleated, Wrapped	Operating Pressure:	Up To 1.0 MPa
Max Temperature:	80°C	Min Temperature:	-30°C
Liquid Aerosol Efficiency:	99.9% For 0.01 μm And Larger
Highlight:	99% Efficiency Coalescing Filter Element , 0.3u Porosity Cartridge Filter Element , Gas/Liquid Separation Stainless Steel Filter Element

Stainless Steel Coalescing Filter Element for Gas/Liquid Separation, Dehydration and Removal

Our high-performance stainless steel coalescing filter element is designed for efficient gas/liquid separation, dehydration, and removal of liquid aerosols and contaminants from compressed air and gas systems. The filter media features a multi-layer coalescing structure that captures and merges fine liquid droplets into larger ones, which are then drained away, ensuring clean, dry, and high-quality gas output.

Key Features

Durable Construction: Made of stainless steel for excellent corrosion resistance and long service life, suitable for harsh environments.
Efficient Coalescence: Advanced coalescing technology effectively removes oil, water, and other liquid aerosols with high separation efficiency.
Wide Compatibility: Ideal for compressed air, natural gas, biogas, and other gas applications requiring dehydration and purification.
Low Pressure Drop: Optimized design minimizes energy consumption and maintains system efficiency.
Easy Maintenance: Replaceable filter element simplifies upkeep and reduces operating costs.

Applications

Compressed air systems
Natural gas dehydration and purification
Biogas processing
Industrial gas pipelines
Pneumatic equipment protection

Specifications

Material: Stainless steel (housing and media support)
Filtration Efficiency: Up to 99.9% for liquid aerosols (0.01 μm and larger)
Operating Pressure: Up to 1.0 MPa (standard, customizable for higher pressures)
Operating Temperature: -30°C to 80°C
Available in various sizes and micron ratings for custom needs.

Enhance your gas system's reliability and performance with our robust coalescing filter elements. Contact us for customized solutions!

Technical Parameters

Parameter	Details
Filter Element Size	Outer Diameter: 150 Inner Diameter: 88
Height	600, 800, 900, 1000, 1150
Operating Temperature	5°C - 80°C
Skeleton	Carbon Steel Perforated
Filter Material	Teflon
Filter Material Form	Pleated Wrapped
Performance Characteristics	Strong Hydrophobicity, Strong Oil Permeability Large Filter Area, Simple Structure, Easy to Install
