Piab 114056 PTFE Pleated Filter Cartridge 99% Efficiency 0.3μm

Piab 114056 PTFE Pleated Filter Cartridge 99% Efficiency 0.3μm
Piab 114056 PTFE Pleated Filter Cartridge 99% Efficiency 0.3μm Piab 114056 PTFE Pleated Filter Cartridge 99% Efficiency 0.3μm Piab 114056 PTFE Pleated Filter Cartridge 99% Efficiency 0.3μm Piab 114056 PTFE Pleated Filter Cartridge 99% Efficiency 0.3μm

Large Image :  Piab 114056 PTFE Pleated Filter Cartridge 99% Efficiency 0.3μm

Product Details:
Place of Origin: Jiangsu, China
Brand Name: FILTERK
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: US$75-85
Contact Now

Piab 114056 PTFE Pleated Filter Cartridge 99% Efficiency 0.3μm

Description
Efficiency: 99% Porosity: 0.03um
Top Diameter: 78mm Bottom Diameter: 126mm
Length: 200mm Weight: 0.6kg
Material: Polyester + PTFE Filter Type: Pleated Filter
Filtration Grade: Hepa Filter Filtering Area: 0.5 M2
Service Life: ≥6 Months Operating Temperature: 80 ℃
Min Particle Size: 0.3μm Inner Core Material: Stainless Steel Perforated Plate
End Caps Material: Stainless Steel Sheet
Highlight:

PTFE pleated filter cartridge

,

0.3μm filter cartridge 99% efficiency

,

cartridge filter element with PTFE

FILTERK Piab 114056 PTFE Pleated Clean Side Removal Cartridges
Product Specifications
Attribute Value
Condition New
Efficiency 99%
Construction Clean Side Removal Cartridges
Porosity 0.03um
Dimensions (L×W×H) (Top)78mm × (Bottom)126mm × (L)200mm
Weight 0.6 kg
Warranty 6 Months
Material Polyester
Type Pleated filter
Medium Material Polyester + PTFE
Filtration Grade HEPA Filter
Filtering Area 0.5 m²
Service Life ≥6 months
Operating Temperature 80 ℃
Minimum Particle Size 0.3μm
OEM Yes
Key Features
  • Designed for extreme fine and free flowing powders like toner
  • Ideal for vacuum conveyors handling powder & bulk materials
  • Antistatic filter construction
  • Premium imported polyester and PTFE materials from USA
  • Stainless steel/electro-galvanized frame and central skeleton
  • Compact design for easy installation
Technical Details
Part Number 114056
Structure Conical Filter Cartridge
Dimensions Bottom OD126 × Top OD140 × Top ID78 × L200 mm
Filter Material Polyester + PTFE Membrane
Efficiency 99% (Particles larger than 0.3-0.5μm)
End Caps Stainless steel sheet
Inner Core Stainless steel perforated plate
Gasket Foam Rubber
Construction Open/Closed
Ordering Information
MOQ No minimum order quantity. Full container recommended for cost savings:
20GP FCL: 270 pieces
40GP FCL: 558 pieces
40HQ FCL: 654 pieces
Loading Port Shanghai
Lead Time Approximately 7 days for 20GP container
Payment Methods T/T, Western Union, PayPal
Shipping Options Sea freight to nearest port
Air freight to nearest airport
Express (DHL, UPS, FedEx, TNT, EMS) to door
Packaging Carton
Production Capacity Approximately 1000 pieces per week

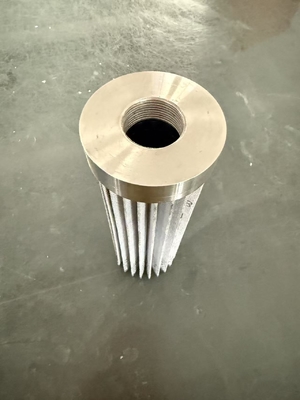

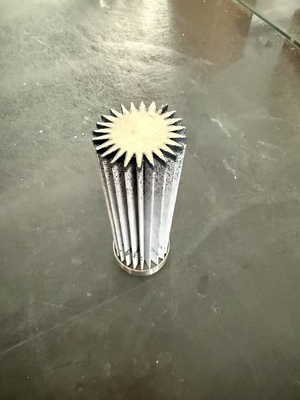

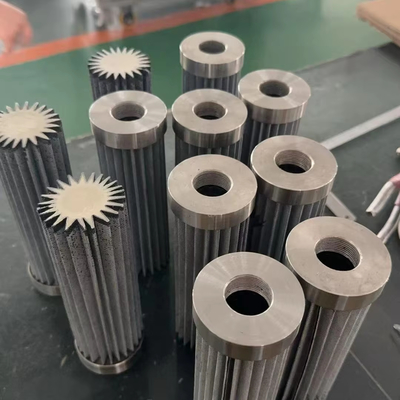

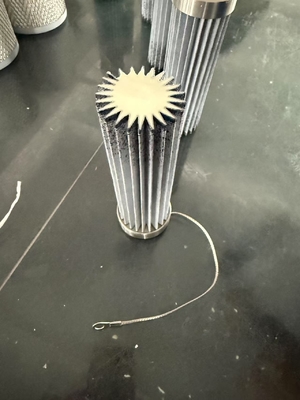

Product Images
Piab 114056 PTFE Pleated Filter Cartridge 99% Efficiency 0.3μm 0 Piab 114056 PTFE Pleated Filter Cartridge 99% Efficiency 0.3μm 1 Piab 114056 PTFE Pleated Filter Cartridge 99% Efficiency 0.3μm 2 Piab 114056 PTFE Pleated Filter Cartridge 99% Efficiency 0.3μm 3 Piab 114056 PTFE Pleated Filter Cartridge 99% Efficiency 0.3μm 4 Piab 114056 PTFE Pleated Filter Cartridge 99% Efficiency 0.3μm 5 Piab 114056 PTFE Pleated Filter Cartridge 99% Efficiency 0.3μm 6 Piab 114056 PTFE Pleated Filter Cartridge 99% Efficiency 0.3μm 7
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Zhangjiagang City, Jiangsu Province, China, about 1.5 hours from Shanghai and 40 minutes from Wuxi Dong station by car. All our clients, from home or abroad, are warmly welcome to visit us!
Q: How can I get some samples?
A: We are honored to offer you samples.
Q: How does your factory do regarding quality control?
A: Quality is priority. Filterk people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2008 authentication.
We are your best choice!
