FILTERK PG4411 WAM Silotop Dust Collector Flat Cell Filter 5um 99.99% Efficiency

FILTERK PG4411 WAM Silotop Dust Collector Flat Cell Filter 5um 99.99% Efficiency
FILTERK PG4411 WAM Silotop Dust Collector Flat Cell Filter 5um 99.99% Efficiency FILTERK PG4411 WAM Silotop Dust Collector Flat Cell Filter 5um 99.99% Efficiency FILTERK PG4411 WAM Silotop Dust Collector Flat Cell Filter 5um 99.99% Efficiency FILTERK PG4411 WAM Silotop Dust Collector Flat Cell Filter 5um 99.99% Efficiency FILTERK PG4411 WAM Silotop Dust Collector Flat Cell Filter 5um 99.99% Efficiency FILTERK PG4411 WAM Silotop Dust Collector Flat Cell Filter 5um 99.99% Efficiency

Large Image :  FILTERK PG4411 WAM Silotop Dust Collector Flat Cell Filter 5um 99.99% Efficiency

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Mfiltration
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: $40-45
Contact Now

FILTERK PG4411 WAM Silotop Dust Collector Flat Cell Filter 5um 99.99% Efficiency

Description
Efficiency: 99.99% Porosity: 5um
Top Size: 460x83 Mm Bottom Size: 410x55 Mm
Length: 1140 Mm Weight: 2.9 KG
Filter Material: 100% Polyester Frame Material: Polyurethane
Filtering Accuracy: 5 μm Pleat Number: 39 Pleats
Operating Temperature: ≤ 135 °C End Caps Material: Molded Polyurethane (PU)
Single Package Size: 49x12x120 Cm Single Gross Weight: 4.0 KG
Package Type: Plastic Bag Inside, Carton Outside
Highlight:

WAM Silotop dust collector filter

,

5um cartridge filter element

,

high efficiency flat cell filter

"FILTERK" PG4411 WAM Silotop Dust Collector Flat Cell Filter Element Panel Filter
Product Specifications
Condition New
Efficiency 99.99%
Construction Flat Filter
Porosity 5μm
Dimensions (L×W×H) (L)460×(W)83 mm / (L)18.11×(W)3.27inch
Weight 2.9 KG
Warranty 6 Months
Filter Material 100% Polyester
Frame Material Polyurethane
Pleat Number (Single Side) 39 Pleats
Bottom Size (L)410×(W)55mm/(L)16.14×(W)2.17inch
Length 1140 mm / 44.88 inch
OEM Yes
Applicable Industries Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Energy & Mining
Warranty of Core Components 1 Year
Core Components INNER CORE, CAPS
Key Features
  • Imported long fiber polyester filter media with interwoven, evenly distributed fibers
  • Excellent abrasion resistance and superior capability to withstand airflow pulse inverse blow
  • Smooth filter media surface that resists sticking
  • Outstanding chemical resistance properties
  • Electro-galvanized/stainless steel cover with central skeleton
  • Professional sealing obturator with elastic neoprene
  • High filter material stiffness allows for repeated washing
  • Operating temperature ≤ 135°C
  • Increased effective filtration area
  • Maintains low steady differential pressure for improved air flow circulation
  • Compact filter cartridge design for easy installation
  • Ideal for high dust concentration industrial applications
Technical Specifications
Part Number PG4411
Structure Panel Filter Cartridge
Dimensions Top (L)460×(W)83, Bottom (L)410×(W)55, (H)1140mm
Filter Material Polyester
Efficiency 100% (Particles ≥5μm)
End Caps Molded polyurethane (PU) - Hard
Ordering Information
MOQ No minimum order quantity. Recommended full container for cost savings (20GP: 502 pieces, 40GP: 1005 pieces, 40HQ: 1168 pieces)
Loading Port Shanghai
Lead Time Approximately 10 days for 20GP container
Payment Methods T/T, West Union, Paypal
Shipment Options By sea to nearest port, by air to nearest airport, by express (DHL, UPS, FEDEX, TNT, EMS) to door
Package Carton
Production Capacity Approximately 1000 pieces per week
Product Images

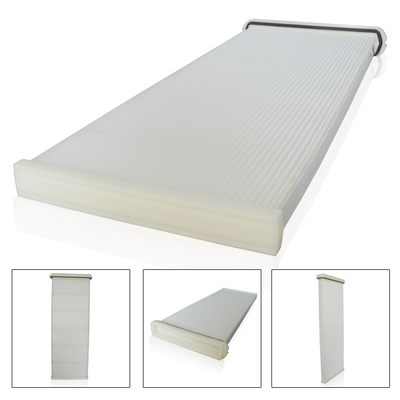

FILTERK PG4411 WAM Silotop Dust Collector Flat Cell Filter 5um 99.99% Efficiency 0

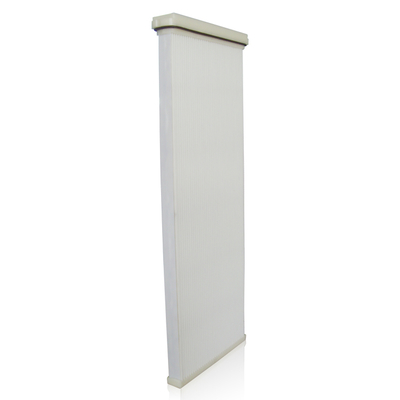

FILTERK PG4411 WAM Silotop Dust Collector Flat Cell Filter 5um 99.99% Efficiency 1

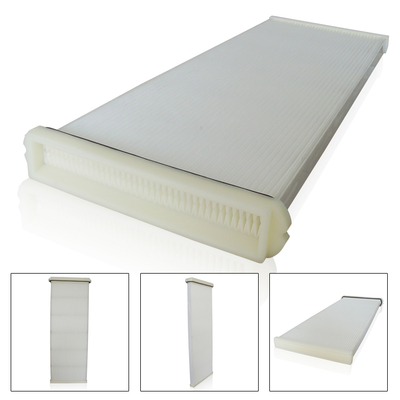

FILTERK PG4411 WAM Silotop Dust Collector Flat Cell Filter 5um 99.99% Efficiency 2

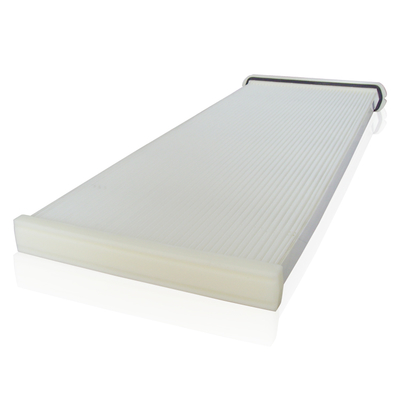

FILTERK PG4411 WAM Silotop Dust Collector Flat Cell Filter 5um 99.99% Efficiency 3

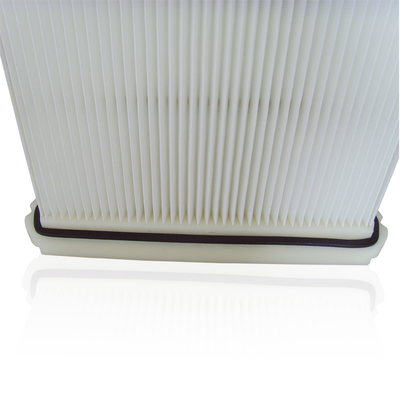

FILTERK PG4411 WAM Silotop Dust Collector Flat Cell Filter 5um 99.99% Efficiency 4

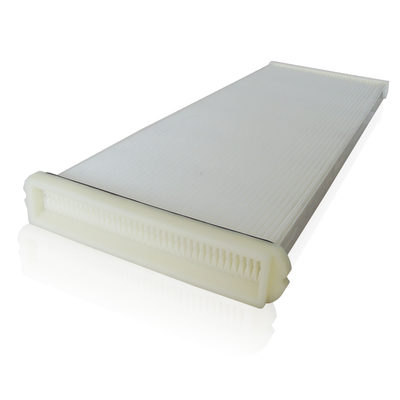

FILTERK PG4411 WAM Silotop Dust Collector Flat Cell Filter 5um 99.99% Efficiency 5
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Zhangjiagang City, Jiangsu Province, China, about 1.5 hours from Shanghai and 40 minutes from Wuxi Dong station by car. All our clients, from home or abroad, are warmly welcome to visit us!
Q: How can I get some samples?
A: We are honored to offer you samples.
Q: How does your factory do regarding quality control?
A: Quality is priority. Filterk people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2008 authentication. We are your best choice!
Packaging Information
Selling Units Single item
Package Dimensions 49×12×120 cm
Package Weight 4.0 KG
Package Type Plastic bag inside, carton outside. Optional: Pallet or wooden case for large quantities (additional cost required)
