Polyester Pleated Pulse Jet Filter 178mm x 1000mm 99.99% Efficiency

Polyester Pleated Pulse Jet Filter 178mm x 1000mm 99.99% Efficiency

Polyester Pleated Pulse Jet Filter 178mm x 1000mm 99.99% Efficiency

Polyester Pleated Pulse Jet Filter 178mm x 1000mm 99.99% Efficiency

Large Image : Polyester Pleated Pulse Jet Filter 178mm x 1000mm 99.99% Efficiency

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	FILTERK Pulse Jet Bag Filter
Certification:	ISO9001:2008
Model Number:	Pulse Jet Bag Filter

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Polyester Pleated Pulse Jet Filter 178mm x 1000mm 99.99% Efficiency

Description

Efficiency:	99.99%	Filtration Grade:	Hepa Filter
Medium Material:	Polyester	Porosity:	0.01 Um
Top Diameter:	OD 178mm, ID 86mm	Bottom Diameter:	OD 146mm
Length:	1000mm	Weight:	2.5 Kg
Filtering Area:	2.3 M2	Service Life:	≥6 Months
Operating Temperature:	≤135℃	Filtering Precision:	5μm, 0.3μm (PTFE Coating)
Construction:	Pulse Jet Bag Filter	Material:	Polyester Pulse Jet Bag Filter
Pleat Type:	Wide And Shallow Pleated
Highlight:	Polyester pleated cartridge filter , Pulse jet filter 178mm x 1000mm , High efficiency 99.99% filter

Polyester Pleated Pulse Jet PTFE Air Cartridge Filter

Attribute	Value
Condition	New
Efficiency	99.99%
Construction	Pulse Jet Bag Filter
Filtration grade	Hepa Filter
Medium material	Polyester Pulse Jet Bag Filter
Porosity	0.01 um
Dimensions (L×W×H)	Top(OD)178mm×(ID)86mm Bottom(OD)146mm Length 1000mm
Weight	2.5 kg
Warranty	3 Months
After-sales Service	No overseas service provided
Filtering area	2.3 m²
Service life	≥6 months
Operating temperature	≤135℃
Filtering precision	5μm / 0.3μm (PTFE Coating)
OEM	Yes

FILTERK Replacement BHA Pulse Jet Bag Filter

Key Features:

100% fine sand bonded polyester construction
Wide and shallow pleated design
Multiple specifications available
High filtration efficiency up to 99.99%
Integrated design for quick and easy installation and maintenance
Compatible with various tube sheet specifications
Top and bottom poured with special materials
Optional surface treatments including PTFE coating and anti-static

Application Environments:

Cement and Rock:

Crush/Grind operations
Coal mill, Raw mill/Cement mill
Clay and Bentonite crushing
Packaging machines
Kaolin processing
Silo top ventilation and dust removal
Material handling and shipping

Aluminum Plants:

Fluidized bed dry-cleaning towers
Venturi jet dry-cleaning towers
Self-baking dry-cleaning towers
Carbon dust processing
Anode breaking and ventilation

Food & Medical:

Food additives processing
Cereal drying
Protein spray drying
Grain processing and flour production
Animal vitamins production
Pharmaceutical sugar-coated tablets

Metallurgy:

Electric arc and blast furnaces
Sulfur removal furnaces
Casting machines
Induction furnaces
Mold cooling lines
Blasting and polishing operations

Chemical Industry:

Fertilizer spray drying
Plastic fiber production
Bleaching powder processing
Polyethylene resin production
PVC and catalyst processing

Paint & Pigment:

Black powder mixing and agitation
Packaging lines
Pneumatic conveying systems
Paint mixing operations
Pigment stirring and spray drying

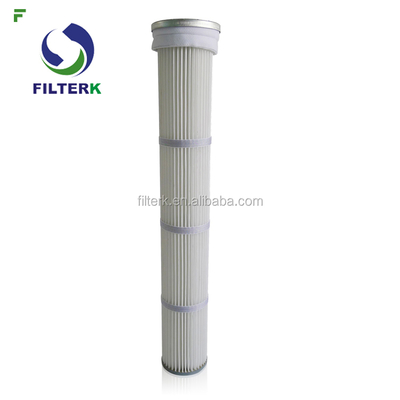

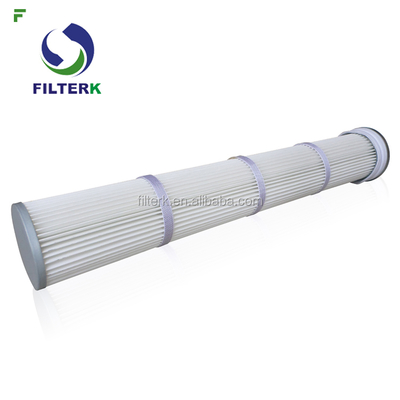

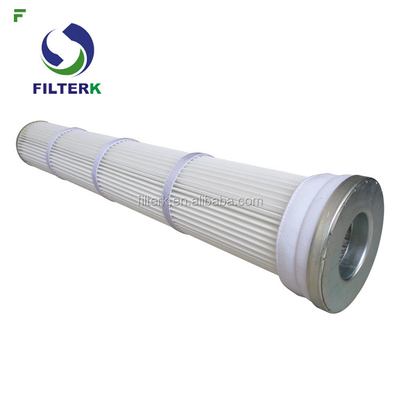

Product Images:

Polyester Pleated Pulse Jet Filter 178mm x 1000mm 99.99% Efficiency 0

Polyester Pleated Pulse Jet Filter 178mm x 1000mm 99.99% Efficiency 1

Polyester Pleated Pulse Jet Filter 178mm x 1000mm 99.99% Efficiency 2

Polyester Pleated Pulse Jet Filter 178mm x 1000mm 99.99% Efficiency 3

Polyester Pleated Pulse Jet Filter 178mm x 1000mm 99.99% Efficiency 4

Polyester Pleated Pulse Jet Filter 178mm x 1000mm 99.99% Efficiency 5

Polyester Pleated Pulse Jet Filter 178mm x 1000mm 99.99% Efficiency 6

Polyester Pleated Pulse Jet Filter 178mm x 1000mm 99.99% Efficiency 7

Polyester Pleated Pulse Jet Filter 178mm x 1000mm 99.99% Efficiency 8

Polyester Pleated Pulse Jet Filter 178mm x 1000mm 99.99% Efficiency 9

Polyester Pleated Pulse Jet Filter 178mm x 1000mm 99.99% Efficiency 10
