FILTERK BHA Industrial Dust Cartridge Filter 99% Efficiency 5 Micron

FILTERK BHA Industrial Dust Cartridge Filter 99% Efficiency 5 Micron
FILTERK BHA Industrial Dust Cartridge Filter 99% Efficiency 5 Micron FILTERK BHA Industrial Dust Cartridge Filter 99% Efficiency 5 Micron FILTERK BHA Industrial Dust Cartridge Filter 99% Efficiency 5 Micron

Large Image :  FILTERK BHA Industrial Dust Cartridge Filter 99% Efficiency 5 Micron

Product Details:
Place of Origin: Jiangsu, China
Brand Name: FILTERK
Certification: ISO 9001:2008
Model Number: BHA Filter For Silo
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now

FILTERK BHA Industrial Dust Cartridge Filter 99% Efficiency 5 Micron

Description
Filtration Efficiency: 99% Filtration Grade: Hepa Filter
Medium Material: Polyester Fiber Porosity: 5 Micron
Top Diameter: 166mm Bottom Diameter: 145mm
Height: 1000mm Weight: 3KG
Operating Temperature: 130℃ Inner Frame: Galvanized Metal Mesh
Top Structure: EPDM Rubber Filter Media: 100% Polyester Nonwoven
Standard Filter Area: 1.4 M2 (1m), 2.7 M2 (2m) Applicable Plate Thickness: 5 Mm
Material Options: PE806, PE806TR, PE810, QP842
Highlight:

BHA industrial dust cartridge filter

,

5 micron cartridge filter element

,

99% efficiency dust filter

FILTERK BHA Industrial Dust Cartridge Filter for Silo
Product Specifications
Condition New
Efficiency 99%
Construction Cartridge Filter For Silo
Filtration Grade Hepa Filter
Medium Material Polyester Fiber Filter For Silo
Porosity 5 Micron
Dimensions (L×W×H) (Top OD)166mm × (Bottom OD)145mm × H1000mm
Weight 3KG
Warranty 3 Months
After-sales Service No overseas service provided
Operating Temperature 130℃
Inner Frame Galvanized metal mesh
Top Structure EPDM rubber
Applicable Site 5 mm thick steel plate
FILTERK ETA Standard Structure Features
  • 100% Polyester nonwoven filter media
  • 130°C continuous operating temperature
  • Wide pleat design for optimal filtration
  • High filtration efficiency
  • Galvanized mesh inner frame for durability
  • EPDM rubber top and galvanized metal chassis structure
  • Compatible with 5mm thick steel plate installations
Available Material Options
PE806 White polyester (standard)
PE806TR White polyester, oil and water proof
PE810 Antistatic polyester
QP842 PTFE tectorial membrane
Filter Cartridge Models
  • FILTERK ETA500: Replaces top-mounted filter bags, fits 127mm tubesheet holes
  • FILTERK ETA525: Replaces top-mounted filter bags, fits 133mm tubesheet holes
  • FILTERK ETA625: Replaces top-mounted filter bags, fits 159mm tubesheet holes
Technical Specifications
FILTERK ETA Model Top Diameter Bottom Diameter 1m Cartridge Filter Area 2m Cartridge Filter Area
500 145mm 124mm 1.4 m² 2.7 m²
525 156mm 124mm 1.4 m² 2.7 m²
625 200mm 147mm 2.3 m² 4.6 m²

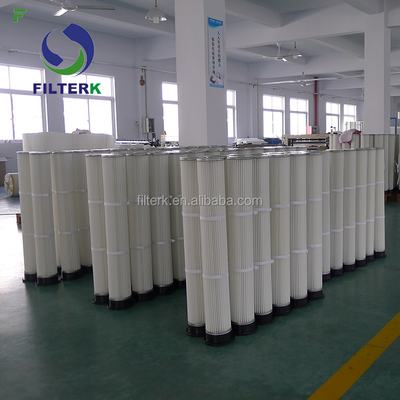

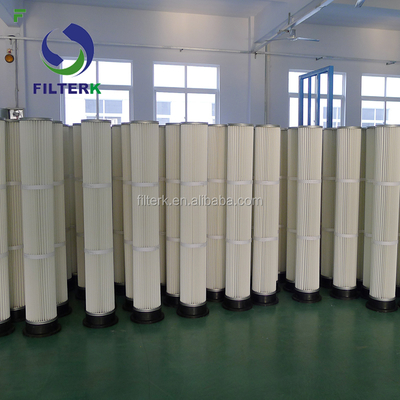

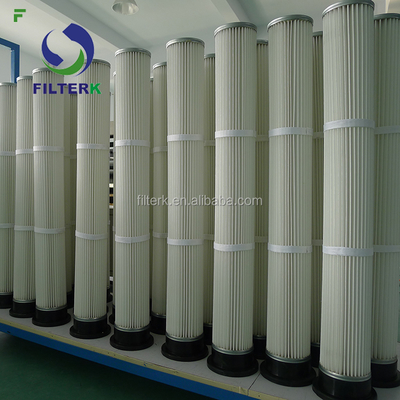

Product Images
FILTERK BHA Industrial Dust Cartridge Filter 99% Efficiency 5 Micron 0
FILTERK BHA Industrial Dust Cartridge Filter 99% Efficiency 5 Micron 1
FILTERK BHA Industrial Dust Cartridge Filter 99% Efficiency 5 Micron 2
FILTERK BHA Industrial Dust Cartridge Filter 99% Efficiency 5 Micron 3
FILTERK BHA Industrial Dust Cartridge Filter 99% Efficiency 5 Micron 4
FILTERK BHA Industrial Dust Cartridge Filter 99% Efficiency 5 Micron 5
FILTERK BHA Industrial Dust Cartridge Filter 99% Efficiency 5 Micron 6
FILTERK BHA Industrial Dust Cartridge Filter 99% Efficiency 5 Micron 7
FILTERK BHA Industrial Dust Cartridge Filter 99% Efficiency 5 Micron 8
FILTERK BHA Industrial Dust Cartridge Filter 99% Efficiency 5 Micron 9
FILTERK BHA Industrial Dust Cartridge Filter 99% Efficiency 5 Micron 10
FILTERK BHA Industrial Dust Cartridge Filter 99% Efficiency 5 Micron 11
