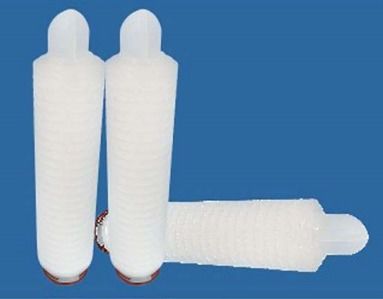

PES Pleated Filter Cartridge High Flow Low Protein Binding

PES Pleated Filter Cartridge High Flow Low Protein Binding
PES Pleated Filter Cartridge High Flow Low Protein Binding

Large Image :  PES Pleated Filter Cartridge High Flow Low Protein Binding

Product Details:
Place of Origin: CHINA
Brand Name: FILTERK
Certification: ISO 9001
Model Number: PES
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Packaging Details: Plastic bag inside,carton outside. Optional: Pallet or wooden case for large quantities.(Need extra cost)
Delivery Time: 1 week
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1000pcs/week
Contact Now

PES Pleated Filter Cartridge High Flow Low Protein Binding

Description
Filter Area: 3 M2 Maximum Pressure: 125 Psi
Diemension: (L)222mm*(W)213mm*(H)255mm Material: Polypropylene
Filtration Accuracy: 3um-200um Certifications: NSF/ANSI 42
Flow Rate: 10 GPM Modle: FKT-FX4002
Porosity: 0.01 Um Construction: Cylindrical
Outer Diameter: 2.5 Inches Micron Rating: 1 Micron
Compatibility: Standard 10 Inch Filter Housings Filtration Efficiency: F7
Medium Material: Polyester PTFE
Highlight:

PES pleated filter cartridge

,

High Flow Pleated Filter Cartridge

,

Low Protein Binding Pleated Filter Cartridge

PES Pleated Filter Cartridge – High Flow & Low Protein Binding


The PES series filter cores are made from imported hydrophilic asymmetric PES membrane materials and non-woven fabrics and silk screens as the support layers, which are folded to form the filter core shell. The center rod and end cap are formed using hot-melt welding technology, and no adhesives are used. θ The entire production process is carried out in a clean room, ensuring 100% integrity testing of the product, followed by high-purity water rinsing. ◇ Suitable for filtering weak acid/water and high-purity water.

Parameter Specifications
Membrane Material Polyethersulfone (PES)
Structure Pleated with PP support core
Pore Size 0.1 μm – 10 μm
Bubble Point ≥3.5 bar (0.2 μm rated)
Max. Temperature 95°C (203°F) continuous
pH Range 2-12 (short-term 1-13)
Protein Binding <5 μg/cm² (low binding grade)
End Caps Polypropylene with EPDM/Silicone gasket
Certifications USP Class VI, FDA 21 CFR 177.2440, ISO 9001
Sterilization Autoclave, Gamma, ETO compatible
Applications • Biopharmaceutical
• IV Solution
• Semiconductor DI water


Engineered for critical bioprocessing applications, our PES pleated cartridges combine high flux rates with ultra-low extractables, making them ideal for sensitive biological fluids. The naturally hydrophilic PES membrane ensures immediate wetting without alcohol pre-treatment.

Key Benefits:
✔ Low Protein Binding – Maximizes product yield in biologics
✔ High Mechanical Strength – Withstands 5 bar forward pressure
✔ Gamma Stable – Maintains integrity after 50 kGy irradiation
✔ Validatable – Full QC documentation available

Package & Delivery

PES Pleated Filter Cartridge High Flow Low Protein Binding 0


Service Provide:

OEM service, printing or logo information is acceptable.
