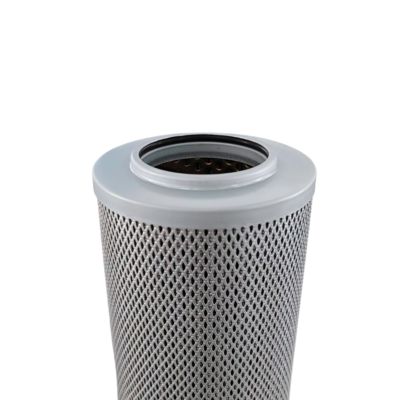

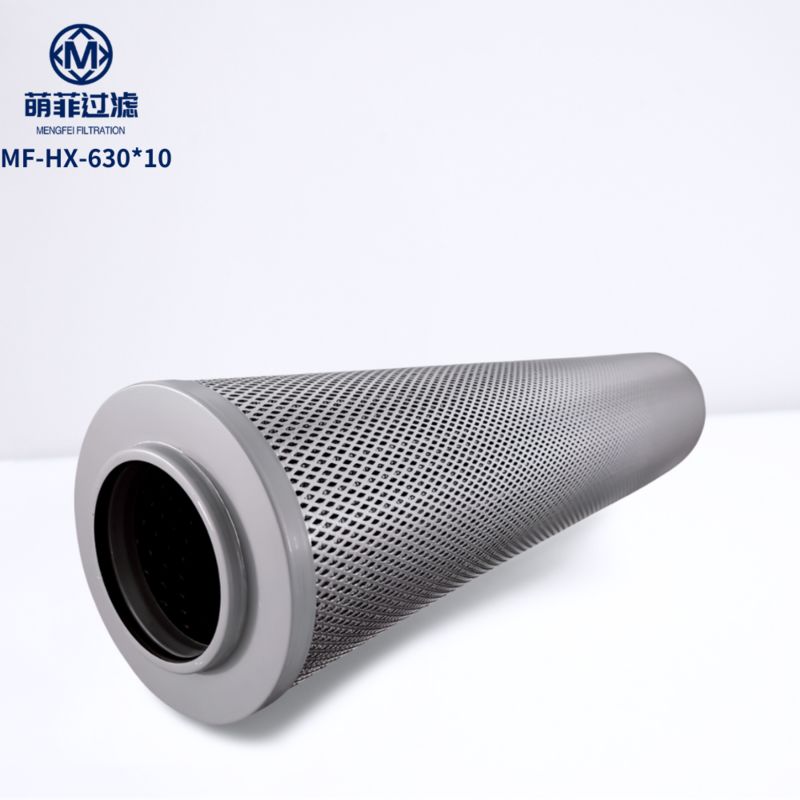

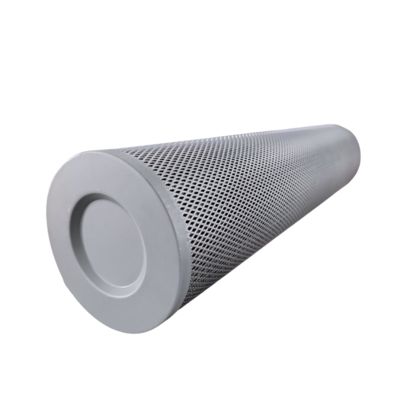

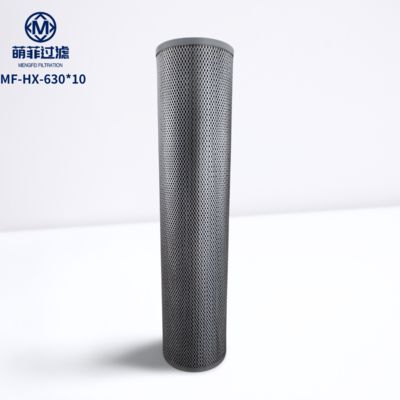

HX630-10 GB Standard Hydraulic Filter Cartridge

HX630-10 GB Standard Hydraulic Filter Cartridge

In hydraulic systems, standard GB oil filter elements are primarily used to remove solid particles and colloidal substances from the working medium, effectively controlling the contamination level of the fluid.

They are widely applied in the purification processes of industries such as petroleum, chemical, metallurgy, aerospace, electronics, electric power, pharmaceuticals, environmental protection, nuclear energy, natural gas, refractory materials, and fire protection equipment.

The HX630-10 standard oil filter element not only protects downstream components, but also serves as a primary filter to maintain the cleanliness level of the system oil. By efficiently purifying the oil, it offers excellent protection for hydraulic pumps. With a filtration precision ranging from 1 to 30μm, the filter element is designed to withstand high pressures and strong vibrations, with a rated pressure of ≤32MPa.

This type of filter element uses imported filter materials and offers advantages such as high filtration precision, strong oil flow capacity, low initial pressure drop, and large dirt-holding capacity. It complies with ISO standards.

Item	Details
Model	HX630-10
Filter Type	Hydraulic Oil Filter Element
Filtration Accuracy	1–30 μm
Rated Pressure	≤32 MPa
Material	Imported high-efficiency filter media
Standard	GB Standard / ISO Compliant
Application	Hydraulic Systems, Industrial Equipment
Industries Used	Petroleum, Chemical, Metallurgy, Aviation, Power, Pharmaceutical, etc.
Function	Removes solid particles and colloids; protects hydraulic components
Features	High dirt holding capacity, low pressure drop, strong flow capacity
Installation Location	Inline hydraulic filters or return line systems
