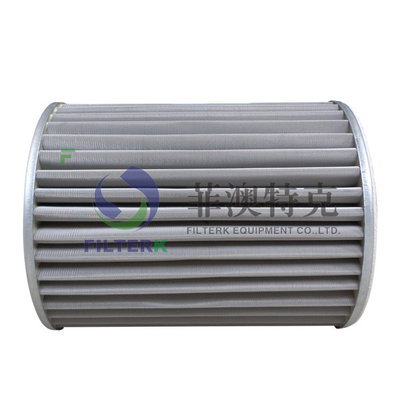

FILTERK 20 Micron Stainless Steel Gas Filter Cartridge for G3.0 – Perfect for Gas Pipeline Protection
Natural Gas Filter Cartridges are cartridge-type filters commonly used in regulators at natural gas stations and in main natural gas pipelines. These filters are typically installed at the inlet of pressure-reducing valves, pressure relief valves, positioning valves, and other equipment.
They provide an effective solution for protecting new pipeline systems, as well as pressure regulation and metering devices, from damage caused by solid particles found in the gas lines—particularly in extended gas distribution networks.
Suitable for natural gas and other types of gases, these filter cartridges effectively remove all forms of dry contaminants, extending the service life of your equipment and significantly reducing maintenance costs.
Features:
Filter Material: Stainless Steel Mesh/Polyester needle punched felt
End Caps Galvanized Iron
Inner Core Galvanized Perforated Plates
Gasket Pressed Felt
OD 9.90 inch / 252 mm
ID 5.43 inch / 138 mm
Length 12.60 inch / 320 mm
Filtering Accuracy 1-3-5-10-20-50-100 Micron
Collapse pressure to request
OEM Yes
Description:
1.pleated type to increase filtration area
2.high efficiency
3.low pressure drop
4.Small filtration resistance
5.Large filter traffic
6.Strong pollutant capacity
7.Durable in use
| Occasion To Use |
natural gas purification plant,long-distance pipeline station,city gas pipeline network,natural gas chemical plant,coking plant,iron and steel metallurgical plant, non-corrosive gas metering etc. |
| Working Pressure |
0.4MPa,1.6MPa,4.0MPa,6.4MPa (It can be customized above 6.4MPa) |
| Connecting Flanges |
ANSI 150/300/600 RF PN 16/40/63/100 RF |
| Operating Temperature |
-10~+50 °C |
| Filtering Accuracy |
5μm,10μm,20μm,50μm,100μm |
| Suitable Medium |
Natural gas,artificial coal gas,liquefied gas and other non-corrosive gases |
| Structure |
Circle,semi-circular |
| Filter Material |
Polyester fibers,stainless steel wire mesh |
Natural Gas Filter
Natural gas filters are used with natural gas, artificial coal gas, and other non-corrosive gases such as nitrogen, carbon dioxide, propane, and butane. They serve as critical components for gas separation and purification, widely applied in gas gathering stations, compressor stations, distribution stations, pigging stations, end stations, and many other settings.
These filters effectively remove impurities such as pipe debris and particles flaking off the inner pipe walls, ensuring the safe and reliable operation of gas systems and equipment. As a result, they help meet the requirements for pipeline transportation and the gas quality standards demanded by end users.
