Product Details:
|
| Application: | Gas Filtration | Dimension: | Customized |
|---|---|---|---|
| Filter Efficiency: | 99% 10um | Filter Media: | SS Mesh |
| High Light: | 10um Natural Gas Filter Cartridge,Distribution Station Gas Filter Element |
||

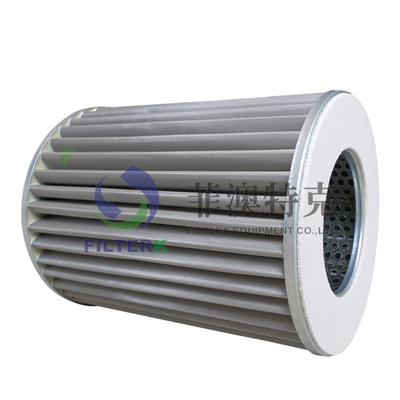

FILTERK G3.0 SS Mesh Media 10um Natural Gas Filter Cartridge G3.0 SS Mesh Media 10um
used in distribution station
The Natural Gas Filters are cartridge type filters used in the regulators of Natural Gas Stations and in main Natural Gas Lines.Natural Gas filter Cartridge usually installed at the inlet end of the pressure reducing valve, pressure relief valve, positioning valve or other equipment. Natural Gas filter Cartridge are the good solution to protect the new pipeline network and reducing and metering devices from the deterioration caused by solid particles present in the gas piping and particularly in the gas extension networks.They are suitable for Natural Gas and other gases.Natural Gas filter Cartridge.Filter Cartridges will remove all forms of dry contamination, lengthening the life of your equipment and saving the maintenance costs.
Features:
Filter Material: Stainless Steel Mesh/Polyester needle punched felt
End Caps Galvanized Iron
Inner Core Galvanized Perforated Plates
Gasket Pressed Felt
OD 9.90 inch / 252 mm
ID 12.60 inch / 138 mm
Length 10.63 inch / 320 mm
Filtering Accuracy 1-3-5-10-20-50-100 Micron
Collapse pressure to request
OEM Yes
Description:
1.pleated type to increase filtration area
2.high efficiency
3.low pressure drop
4.Small filtration resistance
5.Large filter traffic
6.Strong pollutant capacity
7.Durable in use
| Occasion To Use | natural gas purification plant,long-distance pipeline station,city gas pipeline network,natural gas chemical plant,coking plant,iron and steel metallurgical plant, non-corrosive gas metering etc. |
| Working Pressure | 0.4MPa,1.6MPa,4.0MPa,6.4MPa (It can be customized above 6.4MPa) |
| Connecting Flanges | ANSI 150/300/600 RF PN 16/40/63/100 RF |
| Operating Temperature | -10~+50 °C |
| Filtering Accuracy | 5μm,10μm,20μm,50μm,100μm |
| Suitable Medium | Natural gas,artificial coal gas,liquefied gas and other non-corrosive gases |
| Structure | Circle,semi-circular |
| Filter Material | Polyester fibers,stainless steel wire mesh |
Natural Gas Filter
Natural gas filters are applied to gas,artificial coal gas and other non-corrosive gases,such as:Nitrogen,Carbon Dioxide,Propane,Butane etc. They are essential separation and purification equipment components used in gas gathering stations,compressor stations, distribution stations,pigging stations,end stations and a wide range of applications.They can filter dirt in pipes and flaking debris on the pipe wall,to ensure the safe operation of gas and gas equipment,so meet pipeline transportation and natural gas quality requirements of users.
Package & Delivery
Service Provide:
OEM service, printing or logo information is acceptable.
