|Filtration Efficiency:||99.9%(Particles Larger Than 5um)||Constrcution:||Cylindrical|
|Filter Media:||Spunbond Polyester||Dimension(L*W*H):||(OD)324*(ID)213*(H)660 Mm|
|Weight:||6 Kg||Filtering Area:||8 M2|

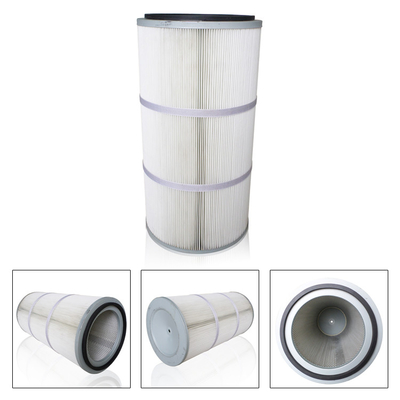

Polyester PTFE Air Filter Cartridge,
Air Filter Cartridge Spunbond Polyester,
Spunbond Polyester Industrial Filter Cartridges
We supply industrial filter cartridges for all dust collector types ranging from silo-top collectors, horizontally mounted cartridge collectors, pleated bag collectors, vertically mounted cartridge collectors, flat cell filter collector. We also supply the filter cartridges for Centrifugal Air Compressors. We provide replacement filters suitable for Donaldson, Camfil,WAM,BHA,Ingersoll Rand and other dust collectors.In addition, we offer customized filter solutions and manufacture exclusive cartridge design for OEM.
Polyester+PTFE Air Filter Cartridge is a membrane-laminated polyester media. This media provides very high initial efficiency on sub-micron particles. With the addition of the film, almost all particles are immediately stopped by the filter (99.9% efficiency). PTFE membrane media provides the best dust cake release properties. PTFE is nearly chemically inert, a desirable property when dealing with reactive products.
(1) Suitable for the filtration of very, very fine dust type in welding fumes Mechanical processing, pharmaceutical and construction industries And sticky dust collection.
(2) Imported spun bonded polyester with PTFE membrane, microporou Offers 99.99+% filter efficiency.
(3) Wide pleat spacing and smooth, hydrophobic PTFE provides excellent particle release .
(4) Excellent resistance to chemical erosion.
(5) Electrochemical plate/stainless steel top and bottom, no rust Perforated zinc galvanized metal inner core allows good airflow.
(6) Applicable temperature: 93-135°C.
Spun bond media filter cartridge has very high filtration efficiencies on fine particulate, along with high resistance to abrasion and chemicals. This media provides superior dust cake release properties compared to paper media. Spun bond media is particularly suitable for pharmaceutical manufacturing, powder coating or fibrous materials such as wood or fiber glass.It can also be used for many other processes, nuisance dusts and pneumatic conveying applications.
End Casp & Inner Core: Electro-galvanized to prevent corrosion. Stainless steel is also available.
Gasket: Professional sealing obturator elastic neoprene.
|Model||O.D. mm||I.D. mm||Length mm||Filter Area m2||Filter Media Type|
More Filter Materials are Available:
