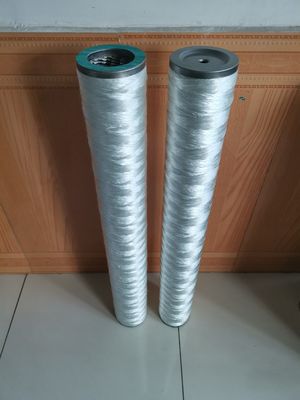

Micro Glass Fiber Coalescer Filter Element JPMG 336-CE-R High Efficiency

Micro Glass Fiber Coalescer Filter Element JPMG 336-CE-R High Efficiency
Micro Glass Fiber Coalescer Filter Element JPMG 336-CE-R High Efficiency Micro Glass Fiber Coalescer Filter Element JPMG 336-CE-R High Efficiency Micro Glass Fiber Coalescer Filter Element JPMG 336-CE-R High Efficiency Micro Glass Fiber Coalescer Filter Element JPMG 336-CE-R High Efficiency

Large Image :  Micro Glass Fiber Coalescer Filter Element JPMG 336-CE-R High Efficiency

Product Details:
Place of Origin: China
Brand Name: Filterk
Certification: ISO SGS
Model Number: JPMG 336-CE-R
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: negotiation
Packaging Details: Plastic bag inside,carton outside. Optional: Pallet or wooden case for large quantities.(Need extra cost)
Payment Terms: T/T, Western Union
Contact Now

Micro Glass Fiber Coalescer Filter Element JPMG 336-CE-R High Efficiency

Description
After-sales Service Provided: No Overseas Service Provided Recommended Change-Out DP: 15 Psid
Operating Temperature: -46~+110 ℃ Dimension: 114(OD)*83(ID)*914(H)
Filtration Efficiency: 99.9% Design Specifications: SME VIII Div.1,GB150,EN13445
Filtering Accuracy: 0.3 Micron OEM: Yes
Highlight:

0.3 Micron Coalescer Filter Element

,

Micro Glass Fiber Coalescer Filter Element

,

High Efficiency Coalescer Filter Element

Replacement Jonell JPMG 336-CE-R coalescing filter cartridges with high efficiency

Coalescing filter cartridges are high efficiency, inside to outside flow direction elements specificallydesigned for the removal of liquid and solid contaminant in critical applications.

Filterk’s are available in various grades of absolute rated high performance micro glass, polyester, and polypropylene media with hardware customizable to suit your application.

Dimensions:
Length
914mm
Inside Diameter 79.5mm
Outside Diameter 114mm
Flow Pattern Inside to Out



*Above dimensions are nominal in mm.

Materials:
Coalescing Media: Micro Glassfiber
Drain Layer:Needled Polyester
Inner Core: Stainless Steel
Supports: Stainless Steel
End Caps: Stainless Steel
Gaskets:Buna

Performance:
Standard Micron Rating:0.3 µ
Recommended Initial DP < 0.5 psid
Recommended Change-Out DP :15 psid
Maximum Temperature:300° F

Single Open End
ISO 9001:2008 Certified
Micro Glass Fiber Coalescer Filter Element JPMG 336-CE-R High Efficiency 0


Micro Glass Fiber Coalescer Filter Element JPMG 336-CE-R High Efficiency 1Micro Glass Fiber Coalescer Filter Element JPMG 336-CE-R High Efficiency 2Micro Glass Fiber Coalescer Filter Element JPMG 336-CE-R High Efficiency 3Micro Glass Fiber Coalescer Filter Element JPMG 336-CE-R High Efficiency 4Micro Glass Fiber Coalescer Filter Element JPMG 336-CE-R High Efficiency 5Micro Glass Fiber Coalescer Filter Element JPMG 336-CE-R High Efficiency 6Micro Glass Fiber Coalescer Filter Element JPMG 336-CE-R High Efficiency 7Micro Glass Fiber Coalescer Filter Element JPMG 336-CE-R High Efficiency 8

Tag:

coalescer filter separator,

oil removal coalescing filter,

coalescing air filter
