Product Details:
|

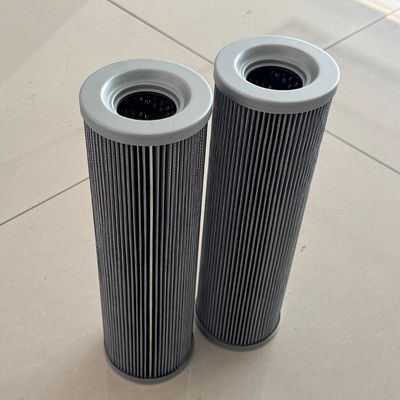

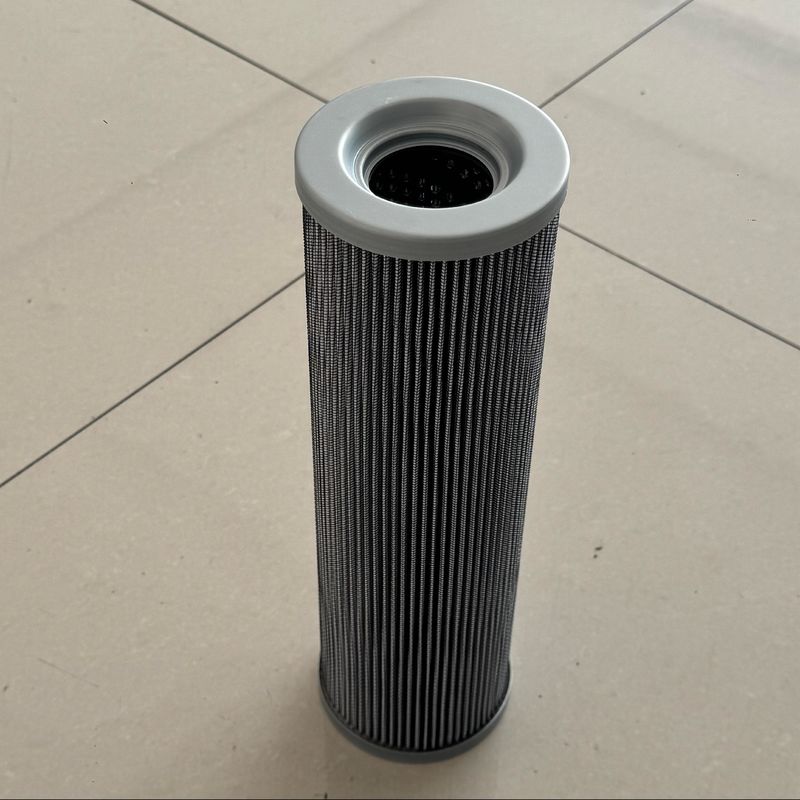

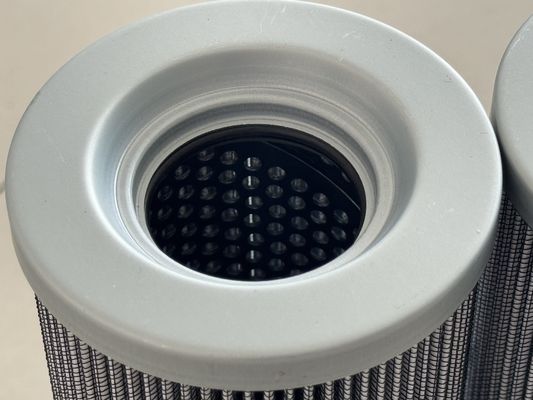

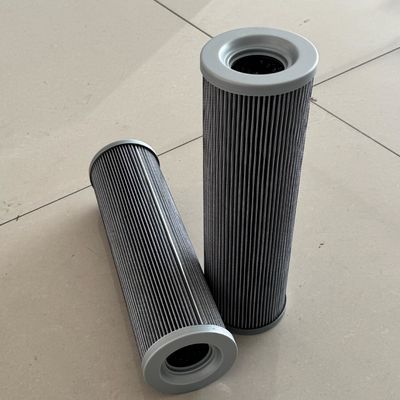

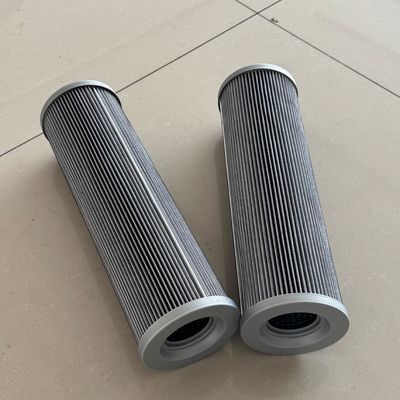

Global equivalent Replacement filter cartridge HC8500FKP13H
Upgrade your hydraulic system’s protection without the high cost of OEM parts! Our HC8500FKP13H replacement filter cartridge delivers identical performance and compatibility as the original, ensuring seamless integration with your equipment. Engineered to meet or exceed industry standards, this aftermarket solution offers exceptional value without compromising reliability.
Model Number | HC8500FKP13H |
Filter Type | Hydraulic Oil Filter / High-Pressure Filter |
Material | High-efficiency glass fiber media |
Construction | Metal end caps & reinforced steel center tube |
Filtration Rating | 13 µm (absolute) |
Beta Ratio (β) | β≥200 (for 13 µm) |
Maximum Pressure | 420 bar (6,000 psi) |
Burst Pressure | 850 bar (12,300 psi) |
Operating Temp. | -30°C to +110°C (-22°F to +230°F) |
Seal Material | Nitrile rubber (NBR) / Optional Fluorocarbon (FKM) |
Bypass Valve | Integrated (opens at ΔP ≥ 3.5 bar / 50 psi) |
Thread Type | 1 ½" UNF (standard) / Customizable |
ISO Standards | ISO 16889 (multi-pass test compliant) |
Applications | Hydraulic systems, construction machinery, industrial equipment |
✔ Perfect Fit: Matches the exact dimensions and thread type (1 ½" UNF) of the OEM HC8500FKP13H filter.
✔ High-Efficiency Filtration: 13 µm absolute rating (β≥200) to capture damaging contaminants.
✔ Heavy-Duty Construction: Reinforced steel core and metal end caps withstand pressures up to 420 bar (6,000 psi).
✔ Optimized Media: High-grade glass fiber maximizes dirt-holding capacity and extends service life.
✔ Bypass Protection: Integrated valve opens at 3.5 bar (50 psi) to prevent system starvation.
✔ Wide Fluid Compatibility: Works with mineral oils, synthetics (HLP, HVLP), and biodegradable fluids.
Cost Savings: Up to 30–50% cheaper than OEM, with the same performance.
Rigorous Testing: Independently validated to ISO 16889 standards for multi-pass efficiency.
Fast Shipping: In-stock and ready to ship globally – minimal downtime for your operations.
Compatible with hydraulic systems in:
Excavators, loaders, and bulldozers
Industrial presses and CNC machines
Agricultural and forestry equipment
Don’t overpay for OEM labels! Equip your machinery with a trusted, budget-friendly alternative that keeps your systems running smoothly.
Order today and experience premium filtration at a fraction of the cost!
