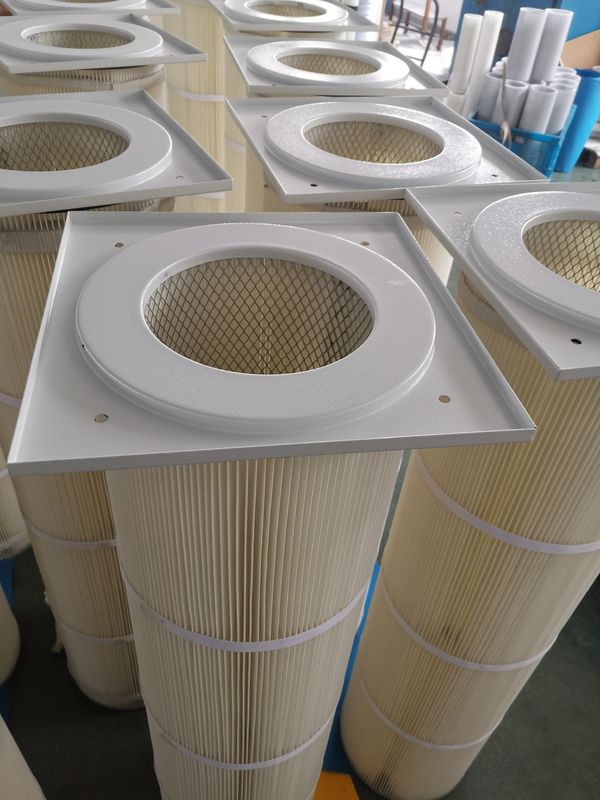

Cylindrical Air Filter Cartridge

Cylindrical Air Filter Cartridge
Cylindrical Air Filter Cartridge Cylindrical Air Filter Cartridge Cylindrical Air Filter Cartridge Cylindrical Air Filter Cartridge

Large Image :  Cylindrical Air Filter Cartridge

Product Details:
Place of Origin: China
Brand Name: Filterk
Certification: ISO
Model Number: MFP 32100
Payment & Shipping Terms:
Minimum Order Quantity: 1-10 pcs
Price: negotiation
Packaging Details: Plastic bag inside,carton outside. Optional: Pallet or wooden case for large quantities.(Need extra cost)
Payment Terms: Western Union, T/T, L/C
Supply Ability: 1000 pcs per week

Cylindrical Air Filter Cartridge

Construction: Cylindrical Air Filter Cartridge Filtration Grade: F7-F9
Medium Material: Cellulose Or Polyester End Caps: Galvanized Steel
Dimension(L*W*H): Can Be Customized Weight: 3.8KG
Certification: ISO 9001:2008 Operating Temperature: 80 ℃
High Light:

air purifier filters


custom air filters


Cylindrical Air Filter Cartridge


Side Mounted Chuck Square Flange Cover Air Filter Cartridge With Optional Filter Media

Side Mounted Chuck Square Flange Cover Air Filter Cartridge with optional filter media

Industrial Cellulose Micron Pleated Suction Compressor Air Filter:

Suitable for the filtration of fine dust type in gas turbines, compressors, shot blast, tobacco, pulverized coal ash and floating dust collection;Widest applications, dry and granular shaped particulate Metal working Shot Blasting Mining industry Chemical Gas turbine


(1) Imported cellulose fiber or synthetic fiber for base

media (80%cellulose and 20%polyester).

(2) Excellent filter efficiency.

(3) Wide pleat spacing, great filter surface.

(4) Electrochemical plate top and bottom, no rust.

(5) Perforated zinc galvanized metal inner core, allows good airflow.

(6) Specialty chlorine rubber gasket to ensure airtight sealing.

(7) Applicable temperature: 65°C.



Model Top end Cap OD mm Top End Cap ID mm Bottom end cap OD mm Bolt hole mm Height mm Filtration Area M2
MFP 3266 Φ324 Φ213 Φ324 Φ14 660 9.4
MFP 3275 Φ324 Φ213 Φ324 Φ14 750 10.6
MFP 32100 Φ324 Φ213 Φ324 Φ14 1000 14.2
MFP 3566 Φ352 Φ241 Φ352 Φ16 660 10
MFP 35100 Φ352 Φ241 Φ352 Φ16 1000 15.1


Filter Material:

1. Base media: Polyester 20% Cellulose 80%
2. Operating efficiency: 99.9% on 1 micron
3. Washable: Several times
4. Maximum operating temperature: 200oF/93oC
5. Abrasion resistance: Excellent
6. Chemical tolerance: Excellent
7. Optional flame retardant media(FR): To order

Other composition:
1. Gasket: Neoprene rubber, good at absolute hermetic seal, improving the durability
and life.
2. Inside cage: Galvanized steel, to prevent corrosion.
3. Molded top: Available in a varitety of styles and sizes to fit a wide range of
Tubesheet Holes.
4. Molded bottom: Helps resist abrasive wear at the bottom of the elements.

1. Description: Excellent performance on moist, hygroscopic, or agglomerative dust.
2 Marktets: Thermal spray, welding, mining, chemical processing, metal buffing, pharmaceutical,cement, woodworking and etc.
3. Dust types: Fumed silica, metallic fume, metallurgical powders, and etc.
4. Available for collectors: SFF/XLC, SFFK, Torit DFT
5. Substitute: , Nodic, BHA

1. Optional construction and dimensions are available on all cartridges.
2. Please contact us to make optimal filtration solutions of your applications.

Cylindrical Air Filter Cartridge 0


This air filter is your first line of defense against dust, smoke, oil spray and other airborne contaminants which can greatly reduce the lifespan of your equipment. Using this product can prevent harmful contamination present in the ambient air which could potentially cause catastrophic damage to your equipment.
