Product Details:
|
| After-sales Service Provided: | No Overseas Service Provided | Working Pressure: | 6.4MPa |
|---|---|---|---|
| Operating Temperature: | -10~+50 ℃ | Filter Materia: | Polyester Or SS Mesh |
| Inner Core: | Galvanized Perforated Plates | Gasket: | Wool Felt |
| Dimension: | (OD)95*(ID)50*(H)165 Mm | Filtration Efficiency: | 99.9% |
| Design Specifications: | SME VIII Div.1,GB150,EN13445 | Filtering Accuracy: | 0.5μm |
| OEM: | Yes | Weight: | 0.9 KG |
| High Light: | Polyester Mesh Natural Gas Filter Elements,Natural Gas Filter Cartridges 0.5um,Natural Gas Filter Cartridge 100 Micron |
||

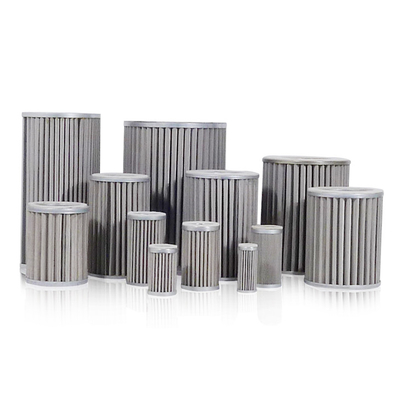

Natural gas filter cartridges are specialized filters designed to remove impurities and contaminants from natural gas streams. These cartridges play a crucial role in maintaining the quality and purity of natural gas for various applications, including residential, commercial, and industrial use.

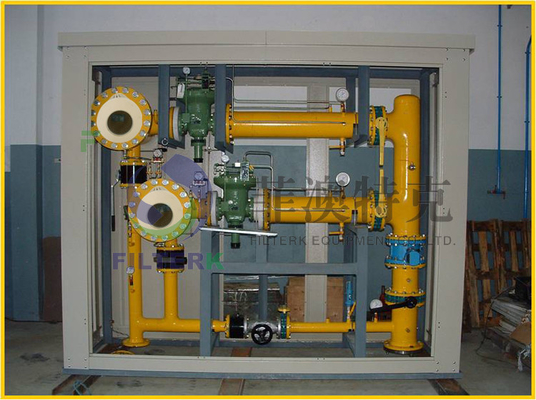

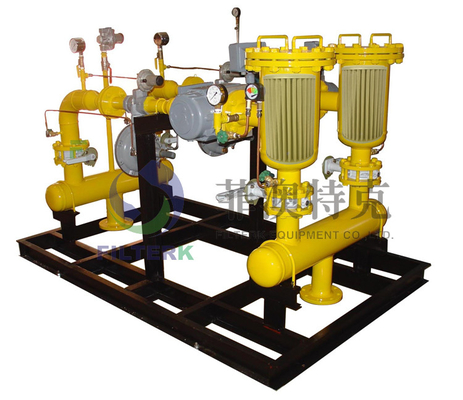

Natural gas filter cartridges used in natural gas regional stations regulators and main natural gas lines. These filters completely solve the problem of dusting in natural gas systems, thus preventing the system from being damaged. They can be produced in different types and optionally as special production. It is produced according to the equipment used in natural gas networks. Apart from the G series G 1, G 1.5, G 2, G 2.5, G 3, G 4, G 5, G 6,G7,G8 filters used in RMS stations, we also produce customied natural gas filters suitable for the station.
OCCASION TO USE
Gas filters are mainly used in natural gas purification plant,long-distance pipeline station,city gas pipeline network,natural gas chemical plant,coking plant,iron and steel metallurgical plant, non-corrosive gas metering and so on.
| Part # | G1.0 | |
| Micron Rating | 5,10,20,50,100 micron | |
| Dimension | (OD)95*(ID)50*(H)165 mm | |
| Filter Material | Stainless steel mesh | |
| End Caps | Galvanized sheet | |
|
Inner Core / Outer Liner |
Galvanized diamond mesh | |
| Gasket | Wool felt | |
| Construction | Open/Open / Open/Closed with bolt hole | |
| MOQ | 1 piece | |
| Loading Port | Shanghai | |
| Lead Time | Around 10 days | |
| Payment | T/T ; West Union ; Paypal | |
| Shipment |
By sea to your nearest port By air to your nearest airport By express (DHL,UPS,FEDEX,TNT,EMS) to your door |
|
| Package | Carton for small element / Wooden box for large elements | |
| Max Capacity | Around 1000 pcs per week | |
We are a leading worldwide supplier of high efficiency filters for a variety of industries and applications. Our goal is to provide the industrial market place with competent, competitive and timely filter solutions. By offering our premier brand, Headline Filters, we are able to provide equivalent and alternative solutions to Parker Filters as well as a multitude of other filter brands. We supply Disposable inline filters & absorbers, emission filters, compressed air filters, gas filters, stainless steel filters and more.
