Product Details:
|
| After-sales Service Provided: | Online Support | Warranty: | 12 Months |
|---|---|---|---|
| Weight: | 3 Kgs | Dimension(l*w*h): | Φ173*H593mm |
| High Light: | Glass Cotton Air Compressor Silencer,XY-30 Air Compressor Muffler,3kgs Air Compressor Filter |
||

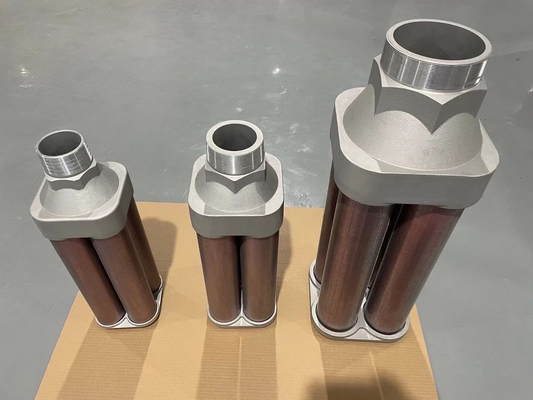

Replacement ALLIED WITAN Air Compressor Muffler Filter Silencer XY-30
Exhaust air flows softly to atmosphere free of noise, oil fog, and other contaminants – helping to maintain a clean, comfortable and productive work environment
Features a unique obstruction-free expansion chamber, with corrosion-resistant aluminum end covers, zinc-plated steel components and a cellulose fiber element
Recommended for general purpose air exhaust applications for pressures up to 125 psi (8.6 Bar)
| Model | Interface Size | Dimensions(mm) | ||
| H | h | D | ||
| XY-05 | 1/2" | 150 | 125 | Φ80 |
| XY-07 | 3/4" | 181 | 156 | Φ87 |
| XY-10 | 1" | 219 | 183 | Φ99 |
| XY-12 | 1 1/4" | 219 | 183 | Φ99 |
| XY-15 | 1 1/2" | 340 | 299 | Φ133 |
| XY-20 | 2" | 476 | 432 | Φ133 |
| XY-30 | 3" | 593 | 472 | 173*173 |
| XY-40 | 4" | 597 | 480 | 198*198 |
| XY-60 | 6" | 790 | 619 | 275*275 |
