Product Details:
|
| Filtration Efficiency: | 99.5% | Constrcution: | Conical |
|---|---|---|---|
| Filter Media: | Plyester With PTFE Coating | Weight: | 6 Kg |
| Filtering Area: | 4.6 M2 | Operating Temperature: | ≤80℃ |
| OEM: | Yes | Dust Collector Pleated Filter Cartrid: | FILTERK Industrial Dust Collector Pleated Filter Cartridges |
| Dimension: | 120*72*600mm | ||
| High Light: | industrial carbon air filter,dust collector filter cartridge,Conical Thread Industrial Dust Filter |
||
We supply industrial filter cartridges for all dust collector types ranging from silo-top collectors, horizontally mounted cartridge collectors, pleated bag collectors, vertically mounted cartridge collectors, flat cell filter collector. We also supply the filter cartridges for Centrifugal Air Compressors. We provide replacement filters suitable for , Camfil,WAM,BHA,Ingersoll Rand and other dust collectors.In addition, we offer customized filter solutions and manufacture exclusive cartridge design for OEM.
Filter Materials Available:
Nano-web Flame retardant

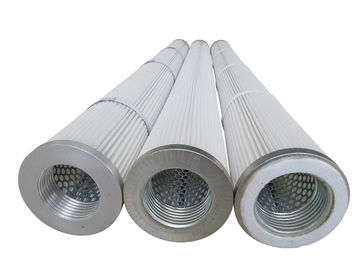

The Conical Thread filter cartridge can be equipped with different filter media making it suitable for various industries and dust types, including abrasive, toxic and explosive dust.
Standard Structure:
| Material (standard) | Material (alternative ) | |
| Top cap | Galvanized steel | Stainless steel , Powder coated , recyclable plastic ABS. |
| Gasket | EPDM | Silicone |
| Inner mesh | Galvanized steel | Stainless steel ,recyclable PP spiro, galvanized helix |
| Outer mesh | Galvanized steel with hotmelt glue |
Stainless steel , Powder coated , recyclable plastic ABS. |
| Bottom cap | Galvanized steel | Stainless steel, Powder coated , recyclable plastic ABS. |
| Filter media | HV Nanoweb material (U.S) | |
| Filtration efficiency | 99.9% | |
Specification:
| Cartridge Model | Top Cap OD mm | Top Cap ID mm | Bottom Cap OD mm | Bolt Hole mm | Height mm | Filtration Surface ㎡ |
| MFF-840-1 | Φ120 | φ71.5/74/72 | Φ80 | / | 840 | |
| MFF-600-1 | Φ120 | φ71.5/74/72 | Φ80 | / | 600 | |
| MFF-985-1 | Φ120 | φ71.5/74/72 | Φ80 | / | 985 | |
| MFF-300-1 | Φ120 | φ71.5/74/72 | Φ80 | / | 300 |
